Description

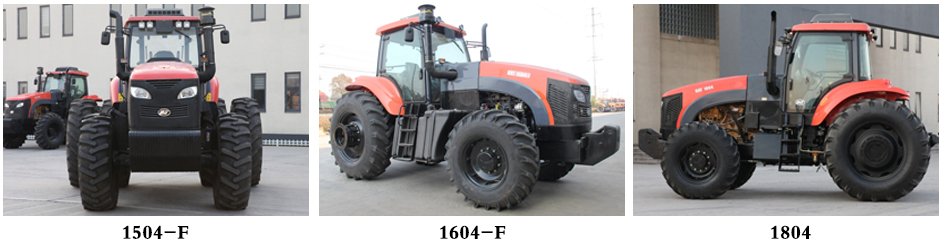

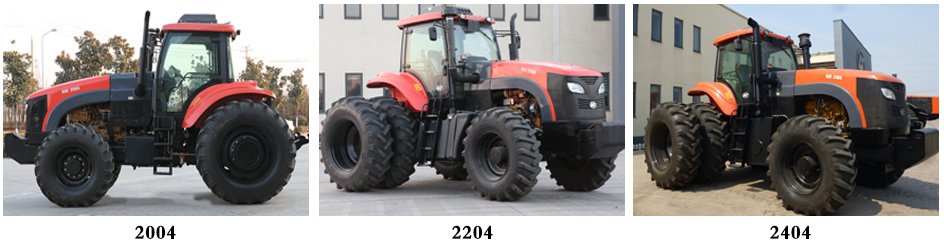

Tractor Series 1504-F/1604-F/1804-F/2004-F/2204/2404/2804-F
Matching Shangcai engines (Electronic Control, Turbocharger and inter-cooling)
CARRARO front axle, construction machinery rear axle.
FAST gearbox with reasonable speed distribution.
Cab with air-condition and fan heater.
Unit Frame with super strong traction.
Trype FH1504-F FH1604-F FH1804-F FH2004-F FH2204 FH2404 FH2804-F
Engine Power/speed Kw/r/min 110.5/2200 118/2200 132.5/2200 147.5/2200 162(200)/2200 177(241)/2200 206/2200
Specific Fuel Consumption g/kw.h         230 230
Drive Type / 4*4 4*4 4*4 4*4 4*4 4*4 4*4
Dimension(L/W/H) mm 5990/2580(Double Tires 3510)/3280 5990/2580(Double Tires 3510)/3280 5990/2580(Double Tires 3710)/3300 5990/2580(Double Tires 3710)/3300 6150/2500(Double Tires 3800)/3480 6150/2500(Double Tires 3800)/3490 6230/2700(Double Tires 3800)/3490
Wheel Base mm 3080 3080 3080 3080 3140 3220 3220
Track(Front Wheel) mm 1888-2124 1888-2124 1928-2240 1928-2240 2070-2154 2070-2154 2070-2154
Track(Rear Wheel) mm 1952-2568 1952-2568 1952-2568 1952-2568 1966-2582 1966-2582 1966-2582
Ground Clearance mm 450 450 450 450 450 450 420
Min.Running Weight kg 7750 7800 8200 8200 9600 10000 9600
Front Traction Force kg 400 400 500 500 700 1000 1000
Traction Force kn 34 36 40 43 48 52
