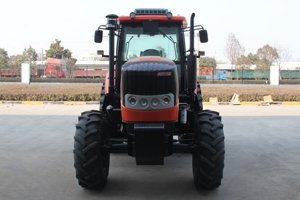

| Tractor Series |
1104/1104/1204/1304-A/1404-A/1504-A |
| ■ Matching China DEUTZ Engine(Electronic Control, Turbocharger and inter-cooling)-Dongfeng Cummins and Shangcai engines can be optional. |
| ■ DANA or CARRARO front axle, construction machinery rear axle. |
| ■ Three-in-one gearbox with reasonable speed distribution. |
| ■ Cab with air-condition and fan heater. |
| ■ Unit Frame with super strong traction. |
| Trype |
FH1004 |
FH1104 |
FH1204 |
FH1304-A |
FH1404-A |
FH1504-A |
| Engine |
Power/speed |
Kw/r/min |
73.5(100)/2300 |
82(110)/2200 |
91(120)/2200 |
97.5(130)/2200 |
105/2201 |
111/2200 |
| Specific Fuel Consumption |
g/kw.h |
≤230 |
≤225 |
≤220 |
≤220 |
|
|
| Drive Type |
/ |
4*4 |
4*4 |
4*4 |
4*4 |
4*4 |
4*4 |
| Dimension(L/W/H) |
mm |
4840/2160/2990 |
5090/2160/3040 |
5090/2300/3070 |
5090/2300/3070 |
5090/2300/3070 |
5620/2300/3020 |
| Wheel Base |
mm |
2688 |
2688 |
2688 |
2688 |
2688 |
2788 |
| Track(Front Wheel) |
mm |
1552-1948 |
1552-1948 |
1698-2122 |
1698-2122 |
1698-2122 |
1698-2122 |
| Track(Rear Wheel) |
mm |
1626-2150 |
1626-2150 |
1626-2150 |
1626-2150 |
1626-2150 |
1730-2300 |
| Ground Clearance |
mm |
480 |
450 |
460 |
460 |
460 |
480 |
| Min.Running Weight |
kg |
5100 |
5700 |
5700 |
5700 |
5700 |
6400 |
| Front Traction Force ≤ |
kg |
400 |
300 |
500 |
500 |
500 |
500 |
| Traction Force |
kn |
24 |
26 |
28 |
30 |
32 |
33 |
| Gear Number |
/ |
16F+4R |
16F+4R |
16F+4R |
16F+4R |
16F+4R |
16F+4R |
| Gear Forward |
Speed |
km/h |
3-33 |
3-32 |
4-33 |
4-33 |
4-33 |
3-33 |
| Gear Reverse |
Speed |
km/h |
6-28 |
6-27 |
6-28 |
6-28 |
6-28 |
6-28 |
| Tires Model |
Front Tires |
/ |
14.9-24 |
14.9-24 |
14.9-24 |
14.9-24 |
14.9-24 |
14.9-26 |
| Rear Tires |
/ |
16.9-38 |
16.9-38 |
18.4-38 |
18.4-38 |
18.4-38 |
18.4-38 |
| Format of the power-output shaft |
Type |
/ |
Rear Position and independent |
| Speed |
r/min |
540/1000 |
540/1000 |
540/1000 |
540/1000 |
540/1000 |
540/1000 |
| Max. Pull-down Piston Pull |
KN |
25 |
25 |
31 |
31 |
31 |
37 |
